Chain Driven Live Roller (CDLR) Conveyors by Webb-Stiles

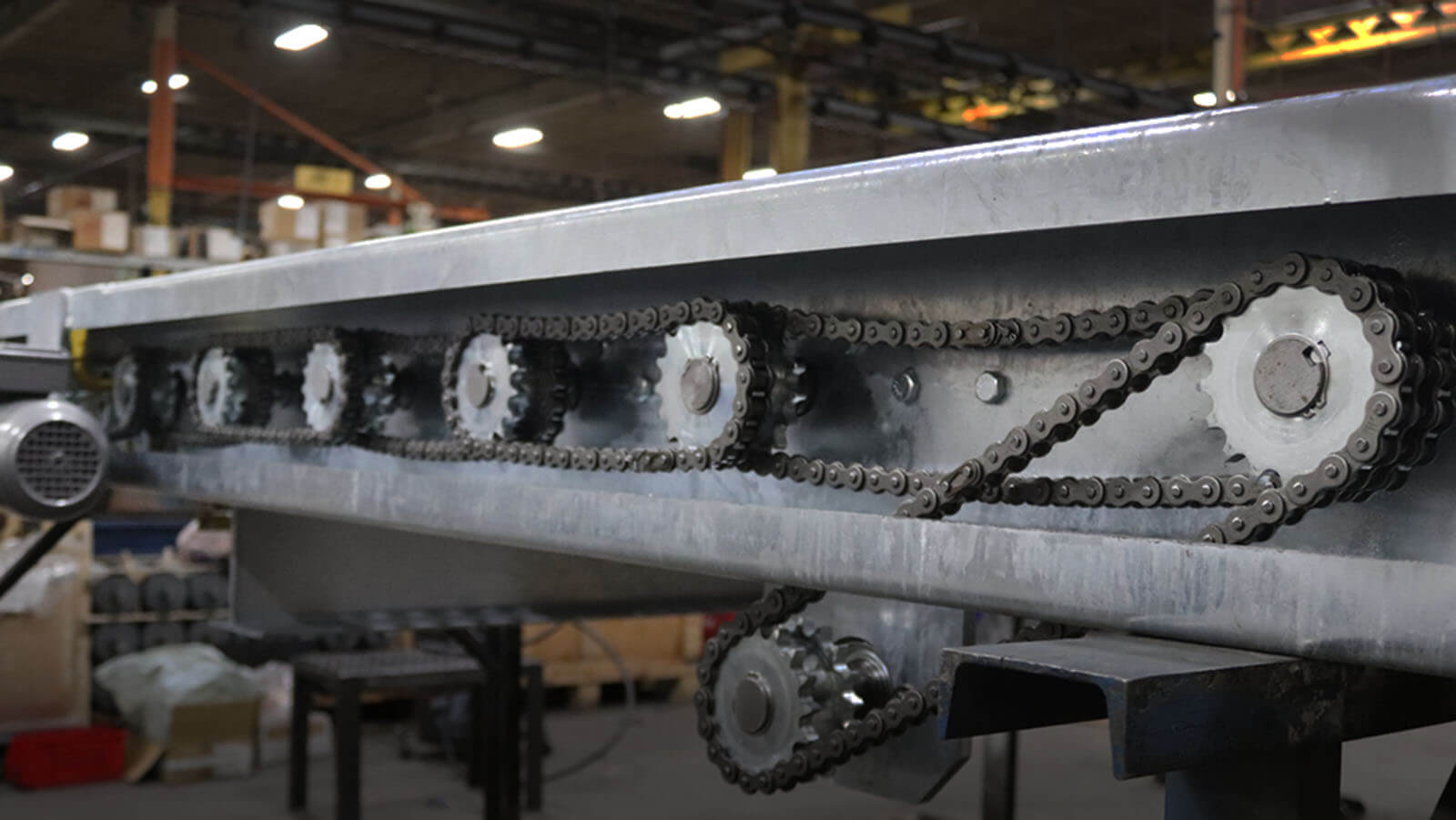

Chain Driven Live Roller conveyor systems are a durable, high-capacity solution for heavy-duty material handling. Each roller is mechanically linked to the next using two separate loops of chain, forming a roll-to-roll drive system that delivers positive traction, consistent motion, and extended equipment life.
This rugged design excels in continuous-use environments where load control and uptime are critical—such as pallet handling, skids, and unitized goods in manufacturing and warehouse systems.
What makes Chain Driven Live Rollers Unique?
Drive Strength & System Longevity
Webb-Stiles CDLR conveyors are built for demanding jobs. The dual-chain roll-to-roll connection boosts drive strength, reduces slippage, and ensures reliable performance. This rugged design delivers consistent power under load—even in continuous-use environments.
Sized and Spaced to Fit the Job
Available with roller diameters from 1⅞″ to 3½″ and roller centers as tight as 3½″, CDLR conveyors can be tailored to meet your load weight, spacing, and system configuration. Standard configurations range from 4½″ to 12″ centers. Frames are offered in structural or formed steel to match duty cycle and layout needs.
Custom Integration Options
Webb-Stiles CDLR systems are often paired with auxiliary handling equipment such as turntables, pallet dispensers, chain transfers, vertical lifts, and bolsters. Custom-designed control panels—electronic, hydraulic, or pneumatic—are built in-house to ensure complete system integration.
CDLR System Features
System Functionality
-
Dual-loop roll-to-roll chain drive for smooth, synchronized movement
-
Positive drive traction ideal for pallets, skids, and high-weight unit loads
-
Supports accumulation, indexing, and continuous-flow applications
-
Available with fixed or variable-speed drives
-
Optional integration with transfer devices, lifts, and controls
Mechanical Design
-
Roller diameters: 1⅞″ to 3½″
-
Chain sizes: RC-50 (6,100 lbs), RC-60 (8,500 lbs), RC-80 (14,500 lbs)
-
Sprocket sizes: 50A14 to 80A15, welded or bolt-on
-
Standard roll centers: 4½″ to 12″ (minimum 3½″ available)
-
Structural or formed frame construction with enclosed chain guards
Downloads & Literature
Explore roller specs, chain data, and dimensional layouts for Chain Driven Live Roller Conveyor system.
Ready to configure your CDLR system?
Contact our team to start designing a solution built for your load, layout, and schedule.
